FOST FTTH Fiber Optic Splice Closure 96 Core Horizontal IP68

Product Categories
Hunan Foconnec Technology Co., Limited
Contact Now

FOST FTTH Fiber Optic Splice Closure 96 Core Horizontal IP68

Brand Name : Twilight Optic

Model Number : TW-J011

Place of Origin : China

MOQ : Negotiable

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 10000 Piece/Pieces per Week

Delivery Time : 10-15 work days

Packaging Details : Standard export carton packing.

Product name : 96cores inline splice closure

Dimension(mm) : 430mm*200mm*120mm

Material : PP+GF

Weight(Kg) : About 3.1kg

Diameter of Cable(mm) : IN 6-12/OUT 8-25

No. of Cable Inlet/Outlet : 2IN-8OUT

Number of Fibers per Tray : 24(single core)

Max. Number of Trays : 4

Protection Grade : IP68

Max. Number of Fibers : 96(single core)

Contact Now

96 Core Fiber Optic Horizontal Splice Closure FTTH Fiber Cable Splice Enclosure

Product Description

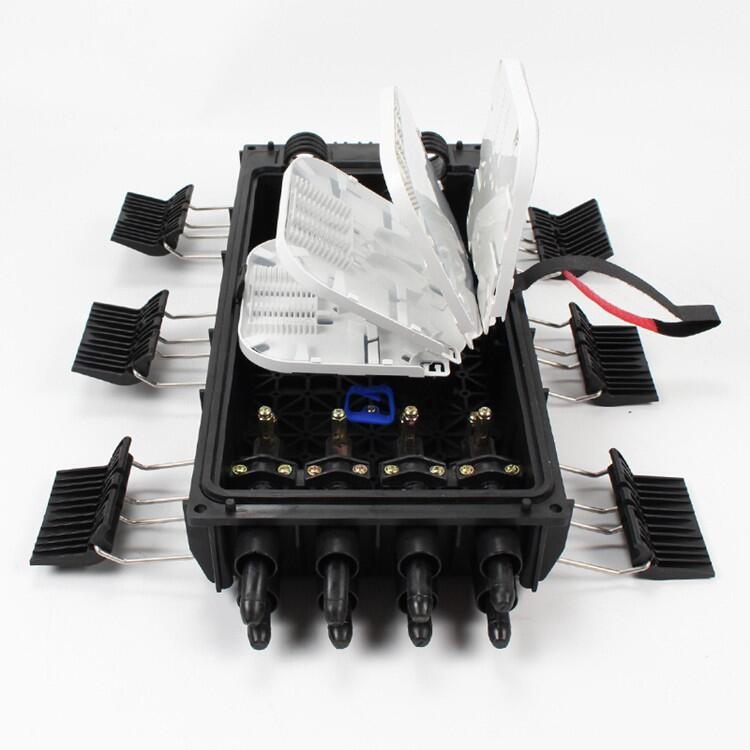

The Model TW-J011 FOSC is mainly used for optical fiber connection and protection. This kind of box is suitable for the connection of overhead, pipe and buried straight and branch.The box body and base are sealed with hoops and rubber. The closure casing is made of quality engineering plastics, and of good performance of anti-erosion against acid and alkali salt, anti-aging, as well as smooth appearance and reliable mechanical structure. The mechanical structure is reliable and has the performance of resistingwild environment and intensive climate changes and serious working environment.The splice trays (FOST) inside the closure are turn-able like booklets, and have adequate curvature radius and space for winding optical fiber to make sure the curvature radius for optical winding 40 mm. Each optical cable and fiber can be operated individually.The product can be opened again and reusedafter installation

Specification

Item Fiber Optic Splice Closure IN-LINE 2IN-8OUT
Dimension(mm) 430mm×200mmx120mm
Material PP+GF
Weight(Kg) About 3.1kg
Diameter of Cable(mm) IN 6-12/OUT 8-25

No. of Cable

Inlet/Outlet

 2IN-8OUT
Number of Fibers per
Tray		 24(single core)
Max. Number of Trays 4
Max. Number of Fibers 96(single core)
Sealing of Inlet/Outlet
ports		 rubber seal
Sealing of Shells Silicon rubber
Working Temperature -40°C~80°C
Protection Grade
IP68

FOST FTTH Fiber Optic Splice Closure 96 Core Horizontal IP68FOST FTTH Fiber Optic Splice Closure 96 Core Horizontal IP68FOST FTTH Fiber Optic Splice Closure 96 Core Horizontal IP68FOST FTTH Fiber Optic Splice Closure 96 Core Horizontal IP68
